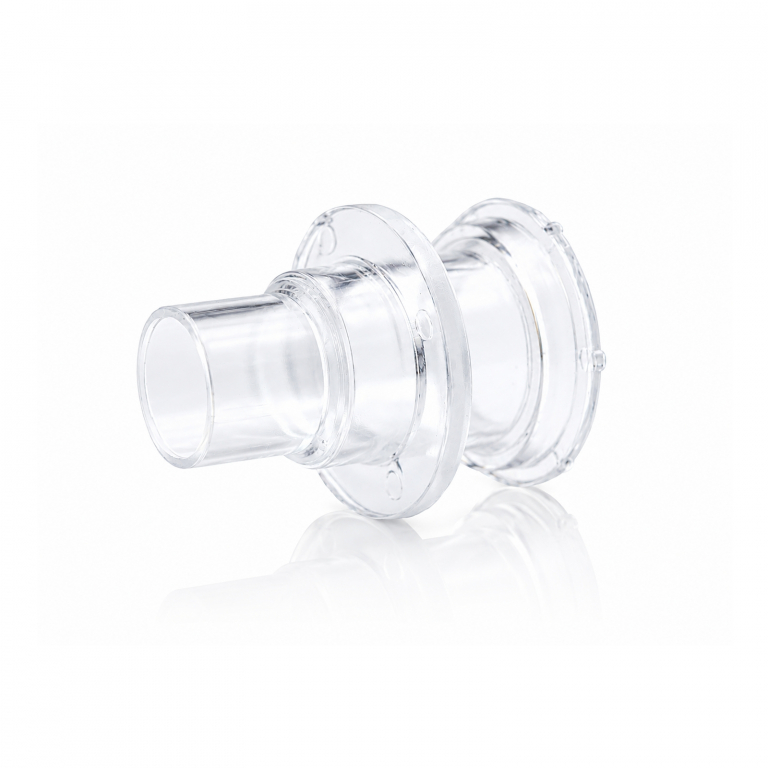

basin hose connector 27mm - 14,20,24mm - transparent

Connector size:
Inner diameter 14mm for hose 14/10mm
Outer diameter first stage 16mm for hose 20/16mm
                            second stage 20mm for hose 24/20mm
Length = 36mm

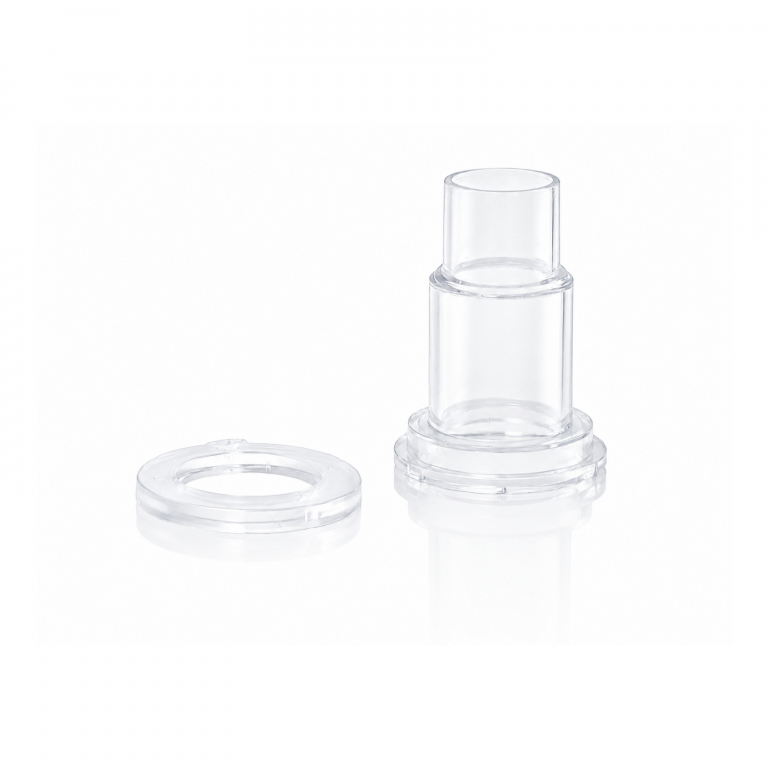

Content:
1x basin hose connector
1x clamping ring

Connection:
arena:  Fits in 27mm (3/4") holes with a wall thickness of 4mm!
hoes  : 14/10 hose is put tightly into socket 14mm
           20/16 hose is put tightly onto first 16mm stage
           22/18 hose is put tightly onto second 20mm stage
           24/20 hose is put loose-fitted onto second 20mm stage

Description:
This pool connector will be inserted through the 27mm hole with a glass wall thickness of 4mm. A clamp ring fixes the connector to the glass arena. At the other end of the connector hoses with 14mm outer diameter or 16mm or 20mm internal diameter can be attached.

Recommendation:
To ensure that the connector sits firmly on the cymbal and does not rattle, the "Formicarium seal 3/4 inch - transparent" item no.: 1005049 should be used.

Note:
Since 08.11.2011 New version! The Set a fixed seated mother was attached.
Since 15.09.2016 New version! Transparent and more tubes to be used.
Since 08.03.2019 New version! Sturdy hose connector for easy insertion.
Since 14.07.2020 New version! Completely transparent with counter clamping ring
